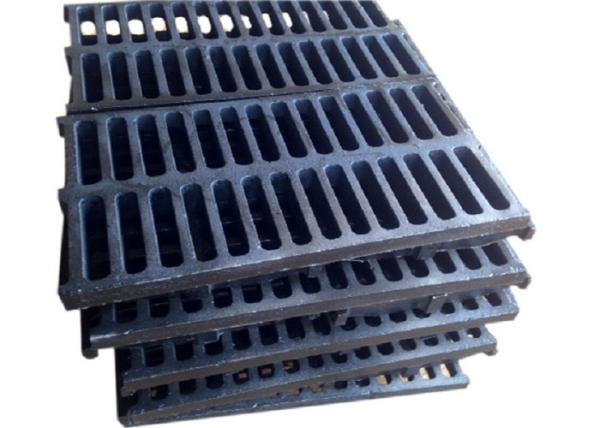

Heavy Duty Driveway Drain Grate Trench Drain Grating Cover Black
Color
Product Details
| Item | Waterproof square 60x60 ductile iron manhole cover |
| Brand name | Better United Casting |
| Size | 200mm-1000mm |
| Type: | Round,square |
| Material | Gray Iron, Ductile Iron, Malleable iron |
| Coating | Cold applied black bitumen Antirust oil, Plating, Paint, Powder
Coating, epoxy coating or as per customers' requirement. |
| Application | Municipal construction |
| Loading pressure | EN124 A15,B125,C250,D400,E600,F900, or as per customers' drawings
or samples. |
| Advantages | Anti-noise ,Anti-theft,anti-rust,long life service. |
| Package | Pallet and wooden case,or as per customers’ requirements |
Class A15 Area which can only be used by pedestrians and pedal
cyclists
Class B125 Folkways, pedestrian areas and comparable areas, car
parks or parking decks
Class C250 For gratings installed in the area of kerbside channels
of roads which, when measured from the Serb edge, extend maximum 0.5 m into the carriageway and maximum 0.2 m
into the foot way
Class D400 Arrive ways of roads (pedestrian streets included), hard shoulders and
parking areas for all types of road vehicles.
Class E600 Areas subject to high axle loads such as docks and
airports
Class F900 Areas subject to very high axle loads such as airports
Standards and features:
1. high strength. Tensile strength σs≥420MPa, yield strength σs≥300MPa, same as low carbon steel, three times that of gray iron
2. Good toughness. The impact value is similar to that of medium
carbon steel, which is more than 10 times that of gray iron
material.
3. Good plasticity. The elongation is as large as 7%, which is
similar to high carbon steel, while the gray iron steel has an
elongation of zero.
4. Strong corrosion resistance. In the water spray corrosion test,
the corrosion amount in 90 days is only one tenth of that of the
steel pipe, which is one tenth of that of the gray iron pipe. The
service life is twice that of gray cast iron, which is 5 times that
of ordinary steel pipe.
