Home > Round Inspection Cover >

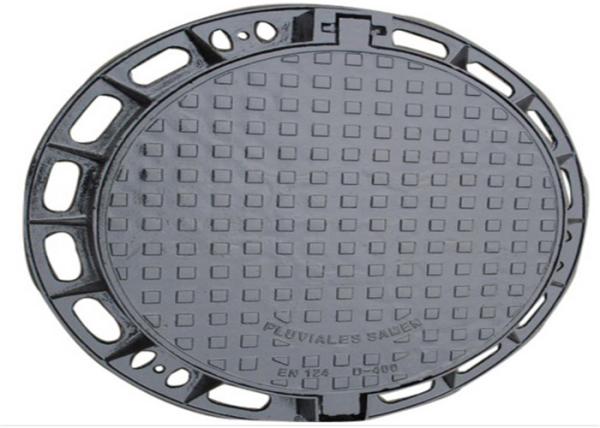

Drainage Cast Iron Drain Grate Round Inspection Chamber Cover 850x850 Mm

Product Categories

Xianxian Shuangxing Casting Co., Ltd.

Contact Now

Drainage Cast Iron Drain Grate Round Inspection Chamber Cover 850x850 Mm

Ask Lasest Price
Brand Name :	SHUANGXING
Model Number :	Drainage Channel
Certification :	ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000 tons per month
Delivery Time :	about 15 days after received the balance money

Add to Cart

Product Details
Company Profile

Drainage Cast Iron Drain Grate Round Inspection Chamber Cover 850x850 Mm

Drainage Cast Iron Drain Grate Round Inspection Chamber Cover 850x850 Mm

B125
Name	Outer Size	Inter Size	Height	Kg	Pcs/Pallets
Manhole Cover	300x300	200x200	24	6.5	60
	400X400	300x300	24	9	60
	500x500	400x400	36	16	30
	600x600	500x500	40	26	30
	700x700	600x600	40	41	15
	800x800	700x700	45	53	16

C250
Name	Outer Size	Inter Size	Height	Kg	Pcs/Pallets
Manhole Cover	400x400	300x300	35	13	60
	500x500	400x400	40	22	30
	550x550	450x450	45	28	30
	600x600	500x500	45	30	30
	700x700	600x600	50	50	13
	800x800	700x700	60	64	12
Square Drainer	400x400	300x300	45	15	60
	500x500	400x400	50	23	30
	550x550	450x450	45	26	30
	600x600	500x500	55	35	20
	700x700	600x600	60	48	13
Manhole Cover	400x400	300x300	75	21	20
	500x500	400x400	75	32	20
	550x550	450x450	75	38	20
	600x600	500x500	75	46	10
	700x700	600x600	75	57	1

D400
Name	Outer Size	Inter Size	Height	Kg	Pcs/Pallets
Manhole Cover	400x400	300x300	75	23	40
	500x500	400x400	75	31	26
	550x550	450x450	75	35.5	20
	600x600	500x500	75	45	20
	700x700	600x600	75	66	10
	800x800	700x700	75	81	10
	900X900	800X800	90	110	10
Rectangular Manhole Cover	1000X1000	900X900	100	135	10
	600x800	500x700	60	48	10
	600x800	500x700	75	60	10

3) product used

The product was used for the roads / idewalk / highway / airport

Drainage Cast Iron Drain Grate Round Inspection Chamber Cover 850x850 Mm

Product Application

1. They are used to carry out inspection, cleaning and removing obstruction in the sewer line.

2. Manhole allows joining of sewers or changing the direction of sewer or alignment of sewer or both.

3. They allow the escape of considerable gases through perforated cover and thus help in ventilation of sewage.

4. They facilitate the laying of sewer line in convenient lengths.

Main Features

1. Shallow manhole
It is provided at shallow depth of 75-90cm (2'-3'). It is provided at the beginning of branch sewer or at a place not subjected to heavy traffic. It is provided with a light cover at its top it is also called inspection chamber.

2. Normal Manhole
It is provided in sewer line at depth of 150cm with a heavy cover on its top. It is generally of square shape (or rectangular shape).

3. Deep Manhole
They are provided at depth greater than 150cm with heavy cover at the top. The size is gradually increased and a facility for going down is provided.
