Heavy Duty Cast Iron Channel Grating Square Storm Drain Grates For Drainage

Ask Lasest Price
Brand Name :	SHUANGXING
Model Number :	Drainage Channel
Certification :	ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000 tons per month
Delivery Time :	about 15 days after received the balance money

Add to Cart

Product Details
Company Profile

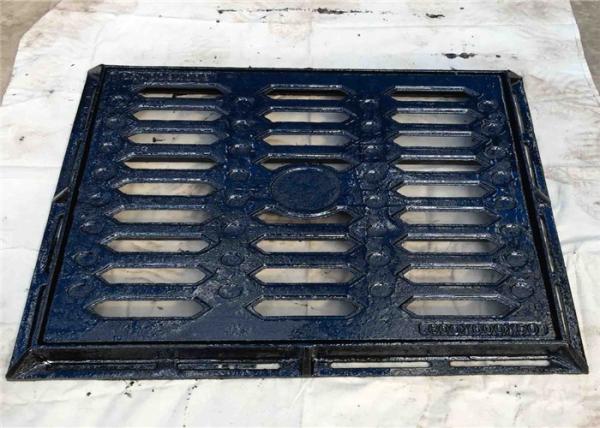

Heavy Duty Cast Iron Channel Grating Square Storm Drain Grates For Drainage

Heavy Duty Cast Iron Channel Grating Square Storm Drain Grates For Drainage

Product Description

CFEATURES
Single seal frame
BS EN124 Class B125
Ductile Iron for lightweight and high strength
Black coated finish

Clear opening (mm): 450 DIA
Over Base (mm): 550 DIA
Depth (mm): 30
Bespoke Options:
-Range of locking both secure and standard
-Neoprene seal
-Badging to your requirements
-Venting

Material	Ductile iron
Surface Treatment	Painting
Load	A15 B125 C250 D400 E600 F900
Standard	EN124-2015 EN1433
Feature	Easy to install noise reduction

Eternal Size	Cover Diameter	Clear Opening	Depth	Weight	Loading Capacity
φ600mm	φ512mm	φ485mm	53mm	55kg	EN124 D400
φ850mm	φ725mm	φ700mm	100mm	72kg	EN124 D400
φ850mm	φ680mm	φ650mm	75mm	54kg	EN124 C250
φ950mm	φ850mm	800mm	100mm	95kg	EN124 D400
φ1150mm	φ1050mm	φ1000mm	100mm	210kg	EN124 D400

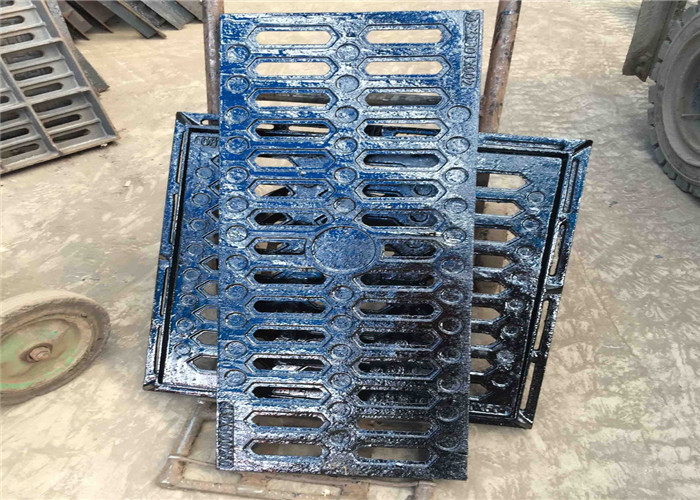

Heavy Duty Cast Iron Channel Grating Square Storm Drain Grates For Drainage

Main Features

1. Shallow manhole
It is provided at shallow depth of 75-90cm (2'-3'). It is provided at the beginning of branch sewer or at a place not subjected to heavy traffic. It is provided with a light cover at its top it is also called inspection chamber.
2. Normal Manhole
It is provided in sewer line at depth of 150cm with a heavy cover on its top. It is generally of square shape (or rectangular shape).
3. Deep Manhole
They are provided at depth greater than 150cm with heavy cover at the top. The size is gradually increased and a facility for going down is provided.
